ROS4HRI Alignment¶

This page explains how ROBIN aligns with the ROS4HRI concepts of operator intent, skill, task, and mission. It shows, for each operator action, the dashboard control that triggers it, the API and ROS interfaces that carry it, the skill that runs it, and where each part lives in the code.

Start with the Supported Action Mapping table for the full picture, then use the Implementation Evidence section to find the matching files.

Scope¶

ROBIN aligns with ROS4HRI through four explicit integration points:

Operator intents - typed Intent values issued by an authorized operator.
Dashboard actions - the Live Ops controls that emit those intents.
Profile-defined skills - robot capabilities declared per domain in config/profiles/*.yaml and implemented as ROS 2 skill action servers.
ROS and API integration points - the POST /intent endpoint, the process-control REST endpoints, and the ROS 2 /intents topic that connect them.

ROBIN is not a full human-robot interaction perception stack. It does not implement speech recognition, gesture recognition, human-pose estimation, or human tracking, and it does not provide the ROS4HRI /humans perception layer. The Intent message follows the ROS4HRI intent structure so the same routing would apply if a perception front-end were added later, but today every intent comes from an explicit dashboard control (a touchscreen or button press) or from an internal supervisor decision.

User Roles¶

ROBIN recognizes three operator-facing roles. Role separation is organizational; it is not enforced by authentication in this baseline.

Authorized dashboard operator¶

Issues operator intents through the Live Ops controls (start, pause, resume, stop, abort / home, manual adjust, request AI recommendation). Reviews deviation alerts and accepts, rejects, overrides, or adjusts AI recommendations before any parameter is applied. Remains the final authority for every process decision.

Process engineer¶

Defines the process envelope: sets geometry targets and tolerance thresholds, chooses the operation mode (parameter_driven or geometry_driven), and launches a new Design of Experiments (DoE) campaign. Reads telemetry, deviation history, and AI model evidence to judge process quality.

Maintainer / integrator¶

Adapts ROBIN to a new domain or deployment: edits the profile YAML (config/profiles/) to declare vocabulary, ROS 2 topics, and skills; wires skill action servers to real hardware; and runs the stack with Docker Compose.

Intent, Skill, Task, and Mission Model¶

ROBIN uses the following terms consistently, in line with the ROS4HRI vocabulary:

Operator intent - a typed value of welding_msgs/msg/Intent (for example START_PROCESS or MANUAL_ADJUST). The message follows hri_actions_msgs/msg/Intent and carries intent, a JSON data payload, and the source, modality, priority, and confidence fields.
Dashboard action - the Live Ops control an operator presses to emit an intent. Each button maps to exactly one intent.
API equivalent - the REST endpoint that carries the intent or its effect. POST /intent publishes an operator intent for the FIWARE-to-ROS 2 bridge, while the process-control endpoints (for example POST /process/{id}/stop) apply the same effect directly.
ROS equivalent - the ROS 2 /intents topic carrying a welding_msgs/msg/Intent message, consumed by the welding_supervisor.
Skill - a ROS 2 action server that implements one robot capability (a welding_*_skill package). Skills are also declared per domain in the profile skills: block.
Task - a single skill goal execution (one ExecuteSeam goal, one MoveToHome goal, and so on).
Mission - a sequence of tasks orchestrated by the supervisor. For example, Abort is a mission that cancels all active tasks, runs a move-to-home task, and publishes an operator error. (Pause is a single task: it freezes the in-progress bead in place via the weld/pause service rather than cancelling it.)

End to end, an intent travels this path:

Dashboard control
  -> POST /intent (Alert Engine)
    -> Orion-LD (NGSI-LD entity)
      -> DDS / notify bridge
        -> ROS 2 /intents topic (welding_msgs/msg/Intent)
          -> welding_supervisor (routes intent to a skill)
            -> welding_*_skill/execute (action goal = task)

Supported Action Mapping¶

User action / intent	Dashboard control	API equivalent	ROS equivalent	Skill / task / mission	Implementation evidence	Current status
Start / execute (`START_PROCESS` / `EXECUTE_SEAM`)	Start	`POST /intent`	`/intents` -> supervisor	`welding_seam_skill/execute` (ExecuteSeam) - task	`LiveOps.tsx`; `ExecuteSeam.action`; `welding_seam_skill`	Implemented (sim + HW path)
Pause (`PAUSE_PROCESS`)	Pause	`POST /intent`	`/intents` -> supervisor	`robin_planner` `weld/pause` (freeze in place, arc off) - task	`LiveOps.tsx`; `welding_supervisor`; `robin_planner_node.py`	Implemented
Resume (`RESUME_PROCESS`)	Resume	`POST /intent` / `POST /process/{id}/resume`	`/intents` -> supervisor	`robin_planner` `weld/pause` resume (continue the bead) - task	`LiveOps.tsx`; `welding_supervisor`; `robin_planner_node.py`	Implemented
Stop (`STOP_PROCESS`)	Stop	`POST /intent` / `POST /process/{id}/stop`	`/intents` -> supervisor	cancel all + move home - mission	`LiveOps.tsx`; `alert_engine.py`	Implemented
Abort / home / E-stop (`ESTOP` / `MOVE_TO_HOME`)	Abort	`POST /intent` / `POST /process/{id}/error`	`/intents` -> supervisor	cancel all + move home + publish `/weld_errors` - mission	`LiveOps.tsx`; `welding_supervisor`; `welding_home_skill` (`/move_home` in hardware mode)	Implemented (MoveIt `/move_home` + Alerts panel error)
Manual adjustment (`MANUAL_ADJUST`)	Manual adjust	`POST /intent` / `POST /process/{id}/input-params`	`/intents` -> supervisor	`welding_manual_skill/execute` (ManualAdjust) - task	`ProcessControlsPanel.tsx`; `ManualAdjust.action`; `welding_manual_skill`	Implemented (Fronius services)
Request AI recommendation (`REQUEST_AI_RECOMMENDATION`)	AI retry	`POST /intent` / `POST /ai-recommendation`	`/intents` -> supervisor	`welding_recommendation_skill/execute` - task	`DeviationMonitor.tsx`; `RequestAIRecommendation.action`; `welding_recommendation_skill`	Implemented (calls `POST /ai-recommendation`)
Launch new DoE (`LAUNCH_NEW_DOE`)	New DOE	`POST /intent`	`/intents` -> supervisor	stop weld + `welding_home_skill/execute`; external GUI on hardware	`Intent.msg`	Partial / external

Implementation Evidence¶

Each behavior in the table is backed by concrete files, grouped by layer.

Dashboard controls¶

robin-dashboard/src/components/features/live-ops/LiveOps.tsx - start, pause, resume, stop, abort controls.
robin-dashboard/src/components/features/live-ops/ProcessControlsPanel.tsx - mode selection, parameter and target-geometry adjustment, apply settings.
robin-dashboard/src/components/features/live-ops/DeviationMonitor.tsx - deviation alert actions, including manual adjust and request AI recommendation.

API endpoints (Alert Engine)¶

Defined in robin/alert_engine.py:

POST /intent - publish an operator intent for the FIWARE-to-ROS 2 bridge.
POST /process/{process_id}/stop / POST /process/{process_id}/resume - process lifecycle control.
POST /process/{process_id}/mode - set parameter_driven / geometry_driven.
POST /process/{process_id}/input-params - update process parameters.
POST /process/{process_id}/target - set geometry target.
POST /ai-recommendation - request an advisory parameter recommendation.
POST /check-deviation - evaluate geometry deviation and return operator options.

Profile-defined skills¶

The skills: block of config/profiles/welding.yaml declares each robot capability as a ROS 2 service or action, for example:

skills:
  start_process:
    ros_type: service
    ros_name: /welding/start
    srv_type: robin_interfaces/srv/StartWeld
    description: Start the welding arc
  run_experiment:
    ros_type: action
    ros_name: /weld_experiment
    action_type: robin_interfaces/action/WeldExperiment
    description: Execute a multi-bead welding experiment

ROS 2 messages, actions, and skill nodes¶

vulcanexus_ws/src/welding_msgs/msg/Intent.msg - intent message following hri_actions_msgs/msg/Intent; defines all intent, source, and modality constants.
vulcanexus_ws/src/welding_msgs/action/*.action - each action file declares its ROS4HRI mapping in a header comment:
- ExecuteSeam.action - motion_skills/action/ExecuteCartesianTrajectory
- MoveToHome.action - motion_skills/action/ExecuteJointTrajectory
- ManualAdjust.action - process_skills/action/ManualParameterAdjust
- RequestAIRecommendation.action - ai_skills/action/RequestRecommendation
Skill action servers: vulcanexus_ws/src/welding_seam_skill, welding_home_skill, welding_manual_skill, welding_recommendation_skill.
Hardware-mode backends (adopter-provided): the /move_home action server that welding_home_skill delegates to and the /execute_bead action server that welding_seam_skill delegates to when launched with use_simulation:=false. The open module ships simulation behavior for both skills.

Launch and orchestration¶

vulcanexus_ws/src/welding_demo/launch/welding_robin_demo.launch.py - brings up the skill nodes, HTTP bridge, and supervisor (no-hardware demo via welding_robin_sim.launch.py).
docker-compose.yaml - composes Orion-LD, the DDS bridge, the Vulcanexus ROS 2 workspace, the Alert Engine, and the dashboard.
docs/LAUNCH_AND_VERIFY_INTENTS.md - step-by-step guide to launch and verify the intent path end to end.

Architecture Diagrams¶

The three diagrams below trace the same intent path, from the wide system view down to the data bridge that carries each intent into ROS 2. Read them top to bottom: the system layer shows where the intent flow sits within ROBIN, the intent layer zooms into the routing from dashboard control to skill, and the bridge flow shows the FIWARE-to-ROS 2 transport that connects the two.

System layer¶

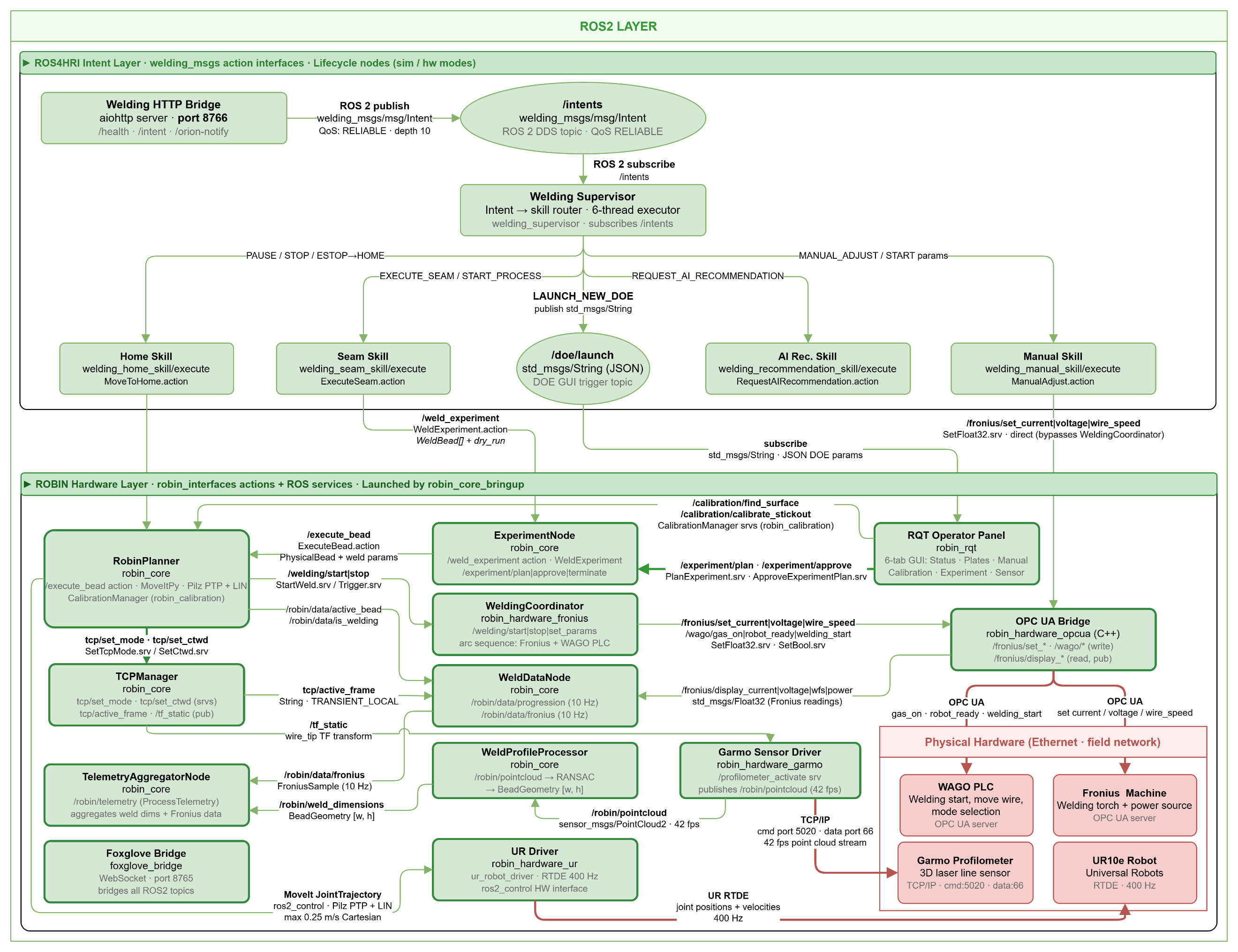

The ROS 2 layer in context: the ROS4HRI-inspired intent flow, skill routing, and the hardware interfaces that the skills ultimately drive. This is where the operator intents from the Supported Action Mapping table enter the robot system.

Intent layer¶

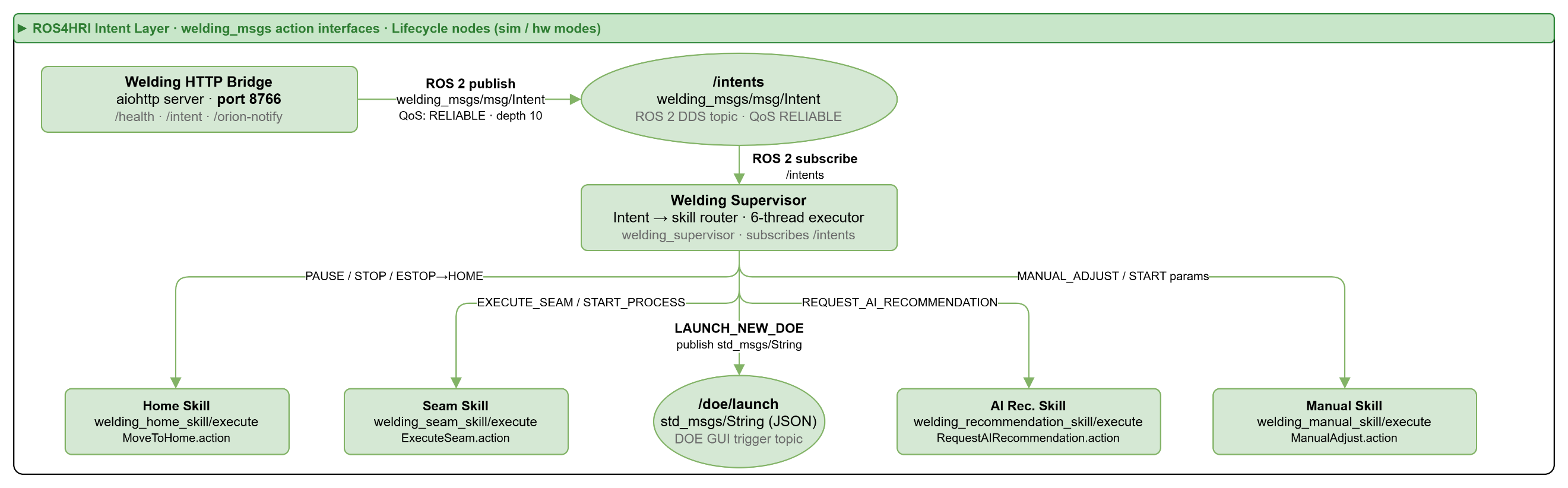

A focused view of the intent routing: the dashboard intent bridge publishes onto /intents, the welding_supervisor routes each Intent to the matching skill, and the skill action servers run the resulting task.

Bridge flow¶

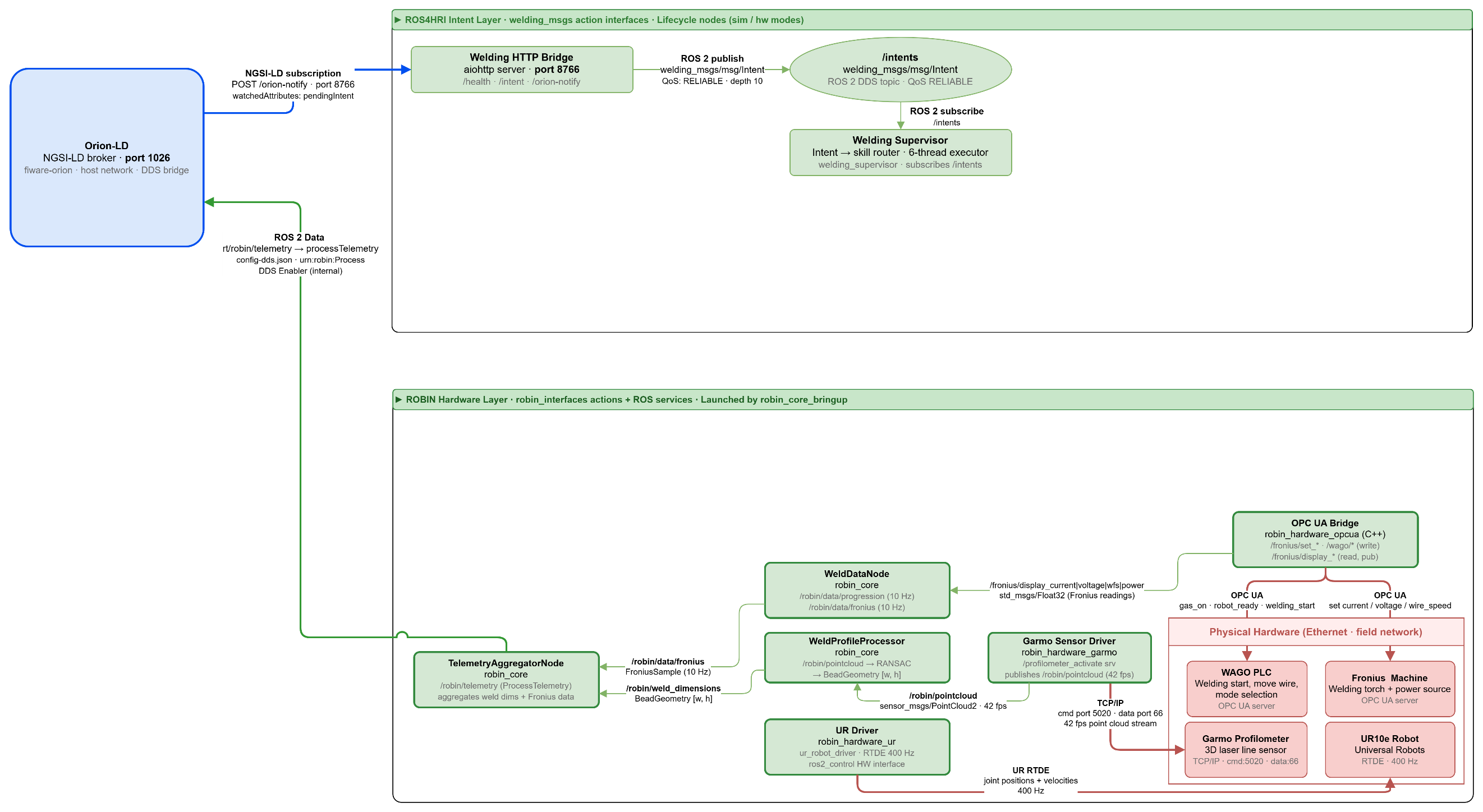

The FIWARE-to-ROS 2 transport: how the POST /intent data stored in Orion-LD crosses the DDS / notify bridge to reach the ROS 2 /intents topic and the intent layer above.

These diagrams are maintained alongside the other evidence under media/architecture/; see media/README.md for the full evidence index.

Current Limitations¶

The following are the current gaps relative to a full ROS4HRI implementation:

No human perception layer. Speech, gesture, human-pose, and human-tracking are not implemented, and the ROS4HRI /humans topics are absent. The Intent schema reserves SPEECH and GESTURE modality constants, but only TOUCHSCREEN and INTERNAL modalities are wired today.
No formal ROS4HRI message packages. ROBIN uses its own welding_msgs package that follows the ROS4HRI structure rather than depending on hri_actions_msgs or hri_msgs.
Recommendation skill preconditions. welding_recommendation_skill calls POST /ai-recommendation and therefore needs the process state the endpoint reads: a geometry target (geometry_driven) or current input parameters (parameter_driven) must already be set, otherwise the skill returns a failure.
DoE launch supersedes the current run. LAUNCH_NEW_DOE announces the new experiment on /doe/launch, then stops the active weld and returns the robot to home (the supervisor cancels all goals and calls welding_home_skill/execute). On hardware it also opens an external configuration GUI; in the no-hardware simulation that GUI is skipped.

Human authority. ROBIN provides monitoring, deviation detection, and AI-assisted recommendations. These recommendations are advisory: the human operator remains the final authority for process decisions and can accept, reject, override, or adjust recommendations before any action is taken.

For configuration and profile details, see Configuration Reference. For the overall data flow, see User Guide Overview.
