Quick Start Guide

This page is the shortest no-hardware path from a clean clone to a working ROBIN run. It validates the FIWARE data layer, Process Intelligence API, and ROBIN Dashboard without requiring UR10e, Fronius, WAGO, Garmo, the MIL cell network, private datasets, proprietary credentials, ROS 2 runtime validation, or the physical demonstrator setup.

For the richer simulated scenario with live dashboard charts, Start-button control, deviation windows, alerts, and history checks, continue with Demo Scripts & Simulations after this hello world passes.

What This Hello World Validates

By the end of this page you will have:

  • a hardware-neutral FIWARE stack running in Docker

  • the Process Intelligence API responding with "healthy"

  • one demo process created

  • one mock measurement ingested into FIWARE

  • the measurement read back through the API

  • the ROBIN Dashboard able to display the demo process

  • one AI-assisted prediction/recommendation generated from mock inputs

        graph LR
    REVIEWER["Reviewer shell"] --> CLI["ROBIN CLI<br/>inside API container"]
    CLI --> ORION["Orion-LD<br/>NGSI-LD"]
    ORION --> MINTAKA["Mintaka<br/>history API"]
    API["Process Intelligence API"] --> ORION
    API --> MINTAKA
    DASH["ROBIN Dashboard"] --> API
    REVIEWER --> API
    REVIEWER --> DASH

Prerequisites

  • Docker and Docker Compose installed and running

  • curl for API checks

  • jq for readable JSON output

Python and Poetry are not required for this hello world because the ROBIN CLI is executed inside the robin-alert-processor container.

See Installation Guide for full setup instructions.

Step 1 - Start the No-Hardware Services

The hello world uses the bundled welding profile because the included model artifact and input feature names are defined by that profile. The command sets ROBIN_PROFILE=welding explicitly so a local .env file or shell variable does not accidentally switch profiles.

Linux:

ROBIN_PROFILE=welding docker compose up -d \
    orion-ld mongo-db timescaledb mintaka alert-processor robin-dashboard

macOS/Docker Desktop:

ROBIN_PROFILE=welding docker compose \
    -f docker-compose.yaml \
    -f docker-compose.macos.override.yaml \
    up -d \
    orion-ld mongo-db timescaledb mintaka alert-processor robin-dashboard

Wait for the API health check:

until curl -fsS http://localhost:8001/health | jq -e '.status == "healthy"' >/dev/null; do
    sleep 2
done
curl -s http://localhost:8001/health | jq '.status'

Expected output:

"healthy"

Step 2 - Create a Demo Process

Use a unique process id so the command remains rerunnable even if previous demo data was not cleaned up:

export PROCESS_ID="reviewer-hello-$(date +%s)"
docker exec robin-alert-processor \
    python -m robin create-process "$PROCESS_ID" --mode parameter_driven

Expected output contains the generated process id:

Created process: reviewer-hello-... (mode: parameter_driven)

Step 3 - Ingest One Mock Measurement

Add one mock geometry measurement with the input parameters expected by the bundled welding profile model:

docker exec robin-alert-processor \
    python -m robin add-measurement "$PROCESS_ID" "${PROCESS_ID}-m001" \
    4.9 7.2 \
    --speed 10.5 \
    --current 120 \
    --voltage 18.4 \
    --input-param wire_feed_speed_mpm_model_input=10.0 \
    --input-param travel_speed_mps_model_input=0.020 \
    --input-param arc_length_correction_mm_model_input=0.0

Expected output contains:

Added measurement reviewer-hello-...-m001 for process reviewer-hello-...: 4.9x7.2mm

Step 4 - Read the Measurement Back

Read the measurement through the Process Intelligence API:

curl -s "http://localhost:8001/process/${PROCESS_ID}/measurements?last=5" \
    | jq '{status, count, source: .debug_info.source, first: .measurements[0]}'

Expected result:

  • status is success

  • count is at least 1

  • source is mintaka, orion, or troe

  • first contains the mock geometry values 4.9 and 7.2

Step 5 - Request an AI-Assisted Prediction

Call the AI recommendation endpoint with the same mock process inputs:

curl -s -X POST http://localhost:8001/ai-recommendation \
    -H "Content-Type: application/json" \
    -d "{
      \"process_id\": \"${PROCESS_ID}\",
      \"mode\": \"parameter_driven\",
      \"input_params\": {
        \"wire_feed_speed_mpm_model_input\": 10.0,
        \"travel_speed_mps_model_input\": 0.020,
        \"arc_length_correction_mm_model_input\": 0.0
      }
    }" | jq '{status, mode: .recommendation.mode, prediction: .recommendation.predicted_geometry}'

Expected result:

  • status is success

  • mode is parameter_driven

  • prediction contains predicted geometry values

Step 6 - Check the Dashboard

Open http://localhost:5174, select the generated reviewer-hello-... process from the process selector, and confirm the dashboard can display the created process and measurement.

This hello world does not exercise the richer Start-button simulation, live 3D visualization, or injected deviation windows. Those are covered by Demo Scripts & Simulations.

Bundled Basic Demo Evidence

The repository includes a captured no-hardware basic demo evidence packet with commands, expected outputs, and screenshots:

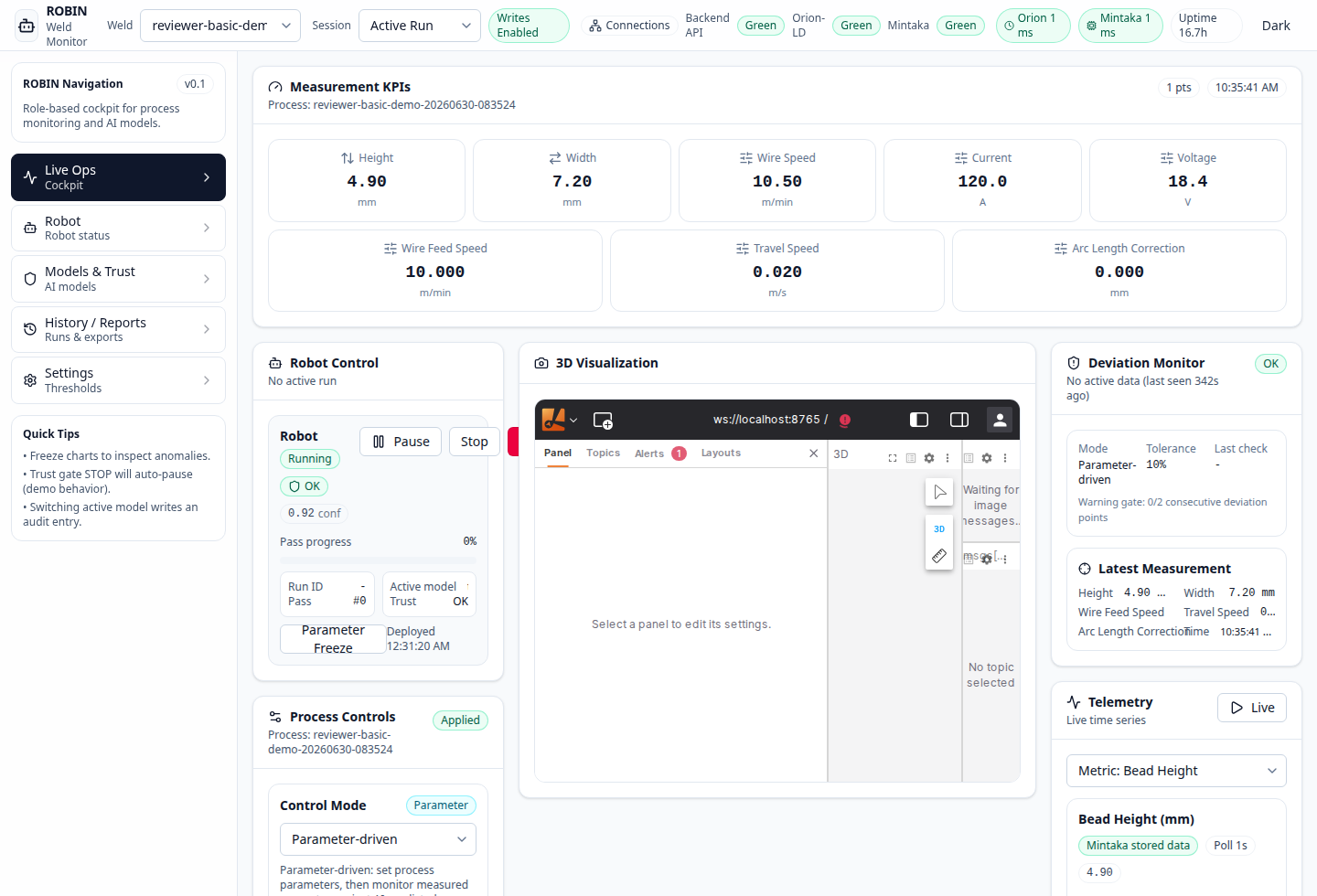

ROBIN Dashboard Live Ops view showing a no-hardware basic demo process with one measurement.

Basic no-hardware demo in the dashboard after one mock measurement was ingested and read back through the API.

Success Criteria

The hello world passes when:

  • /health returns "healthy"

  • the reviewer-hello-... process is created

  • one mock measurement is ingested

  • the API returns the measurement

  • the dashboard can display the process

  • the AI recommendation endpoint returns a prediction

Cleanup

To remove only entities created for this hello world without stopping the stack:

ID_PATTERN=".*${PROCESS_ID}.*"
curl -sG "http://localhost:1026/ngsi-ld/v1/entities" \
    --data-urlencode "idPattern=${ID_PATTERN}" \
    --data-urlencode "limit=1000" \
    | jq -r '.[].id' \
    | while read -r ENTITY_ID; do
        curl -s -o /dev/null -X DELETE "http://localhost:1026/ngsi-ld/v1/entities/${ENTITY_ID}"
done

Or stop the stack and remove local Docker volumes:

docker compose down -v

Use the same -f docker-compose.yaml -f docker-compose.macos.override.yaml prefix for cleanup on macOS if you started the stack with the macOS override.

Next Steps

After the no-hardware hello world passes, run the basic simulated demo:
