REST API & Process Lifecycle

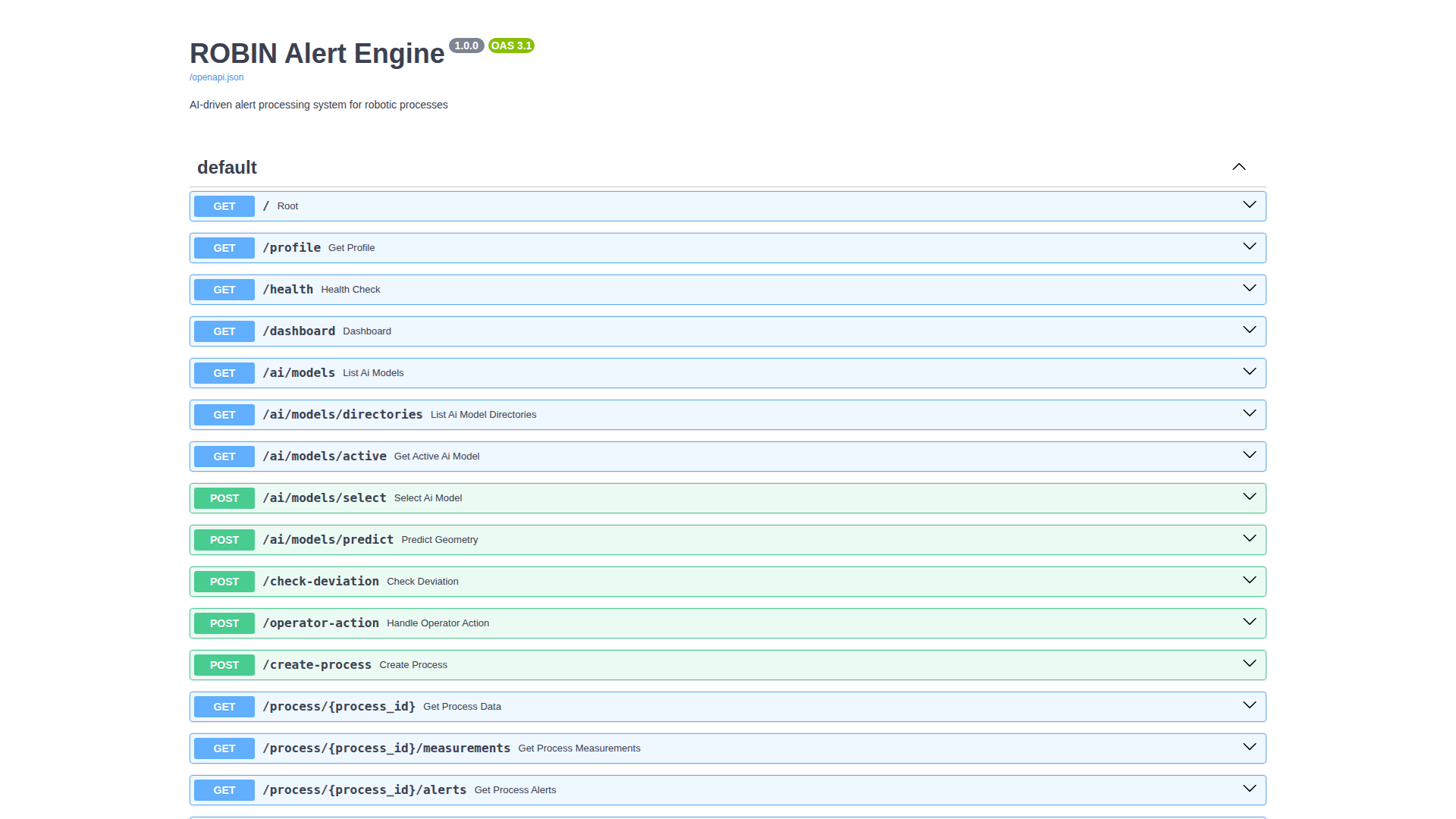

The Alert Engine exposes a REST API at http://localhost:8001 with interactive Swagger documentation at http://localhost:8001/docs.

Endpoint Overview

Category	Endpoints	What it does
Process lifecycle	POST /create-process, GET /processes, stop, resume, POST /process/{id}/mode	Create and manage manufacturing processes
Measurements	GET /process/{id}/measurements	Fetch time-series data via Mintaka or Orion fallback
Alerts / warnings	GET /process/{id}/alerts	Fetch persisted deviation warning events for history/report export
AI models	GET /ai/models, POST /ai/models/select, POST /ai/models/predict	List checkpoints, load a model, run forward predictions
Deviation detection	POST /check-deviation	Compare measured geometry against AI prediction or target
Recommendations	POST /ai-recommendation	Get AI-generated parameter or geometry suggestions
Profile	GET /profile	Active domain profile (vocabulary, fields, skills, AI config)
Health	GET /health	Service health check

Process Lifecycle

Every manufacturing run is represented as a Process entity in Orion-LD. The Alert Engine manages its lifecycle through the states below.

Process States

Status	Meaning	Typical actions
active	Process is running; measurements are expected	monitor, check deviation, stop
stopped	Process intentionally stopped	resume, inspect history
paused	Temporary hold	resume, stop
error	Process or integration failure	investigate, resume / stop

CLI Commands

poetry run robin process-status demo-001

poetry run robin list-processes

poetry run robin stop-process demo-001 --reason "maintenance_required"

poetry run robin resume-process demo-001

API Examples

# Stop a process
curl -X POST "http://localhost:8001/process/demo-001/stop" \
  -H "Content-Type: application/json" \
  -d '{"reason":"operator_request"}'

# Resume
curl -X POST "http://localhost:8001/process/demo-001/resume"

# Status
curl "http://localhost:8001/process/demo-001/status"

# List active processes
curl "http://localhost:8001/processes/list?status_filter=active"

# Fetch persisted warning events for a process
curl "http://localhost:8001/process/demo-001/alerts"

# Set operation mode explicitly
curl -X POST "http://localhost:8001/process/demo-001/mode" \
  -H "Content-Type: application/json" \
  -d '{"mode":"geometry_driven"}'

Process Entity Fields

The urn:robin:Process entity carries lifecycle metadata:

• processStatus - current state

• startedAt / stoppedAt - ISO timestamps

• stopReason - why the process was stopped

{
  "processStatus": {"type": "Property", "value": "active"},
  "startedAt": {"type": "Property", "value": "2026-02-22T10:30:00Z"},
  "stoppedAt": {"type": "Property", "value": null},
  "stopReason": {"type": "Property", "value": null}
}

Best Practices

1. Use explicit stop reasons (scheduled_maintenance, quality_threshold_exceeded, operator_intervention).

2. Check status before issuing control actions.

3. Keep lifecycle events auditable through API logs and Orion state.

Troubleshooting

If process status appears inconsistent:

curl http://localhost:8001/health

curl -H "NGSILD-Tenant: robin" \
  "http://localhost:1026/ngsi-ld/v1/entities/urn:ngsi-ld:Process:demo-001"

See Troubleshooting Guide for more diagnostic steps.
